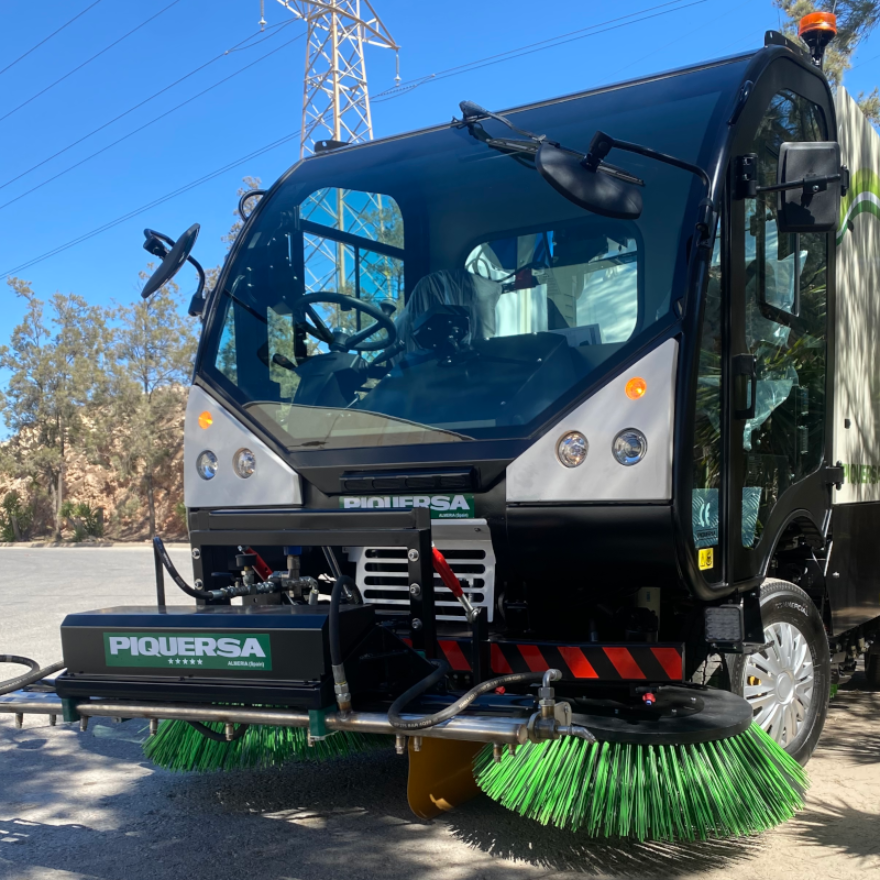

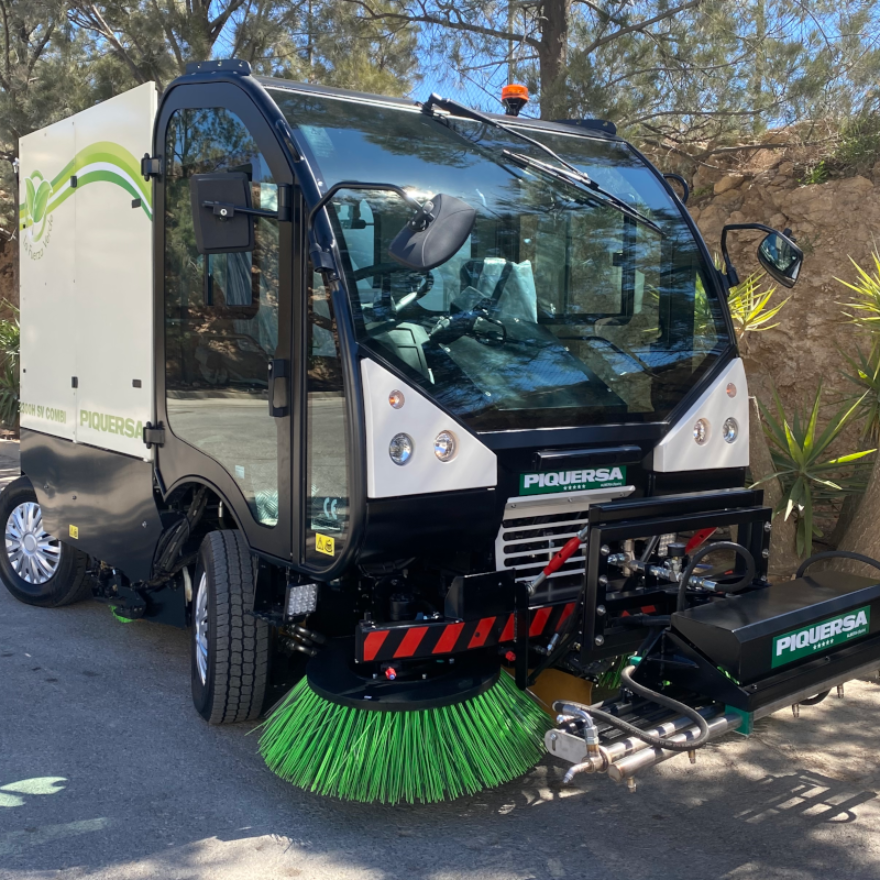

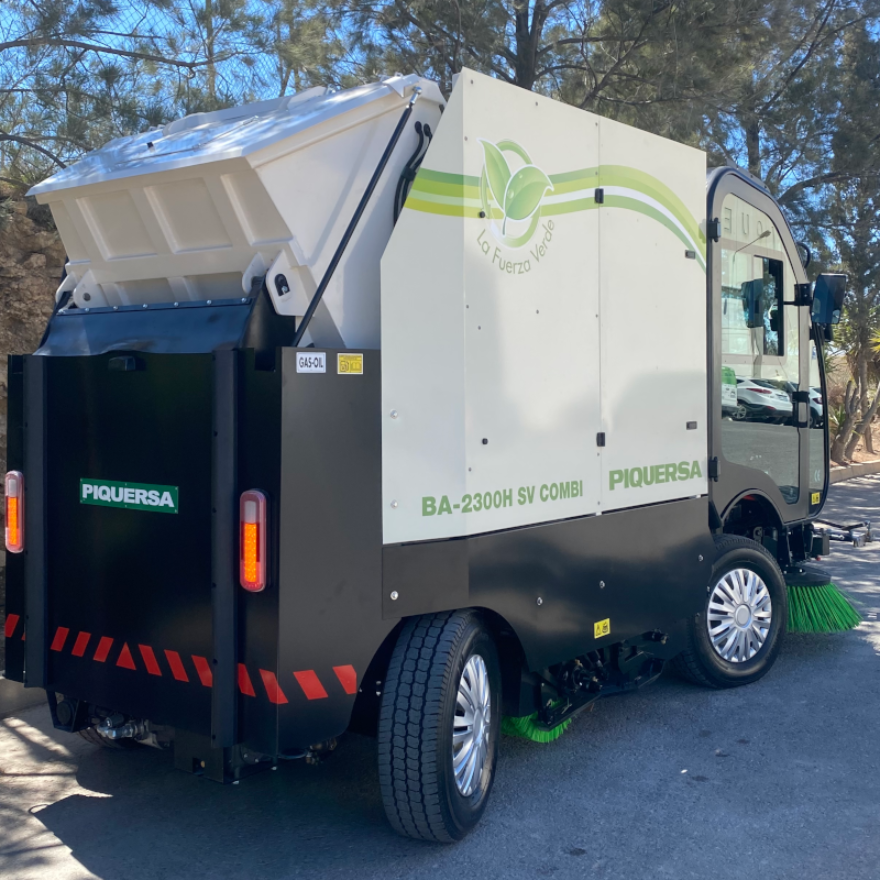

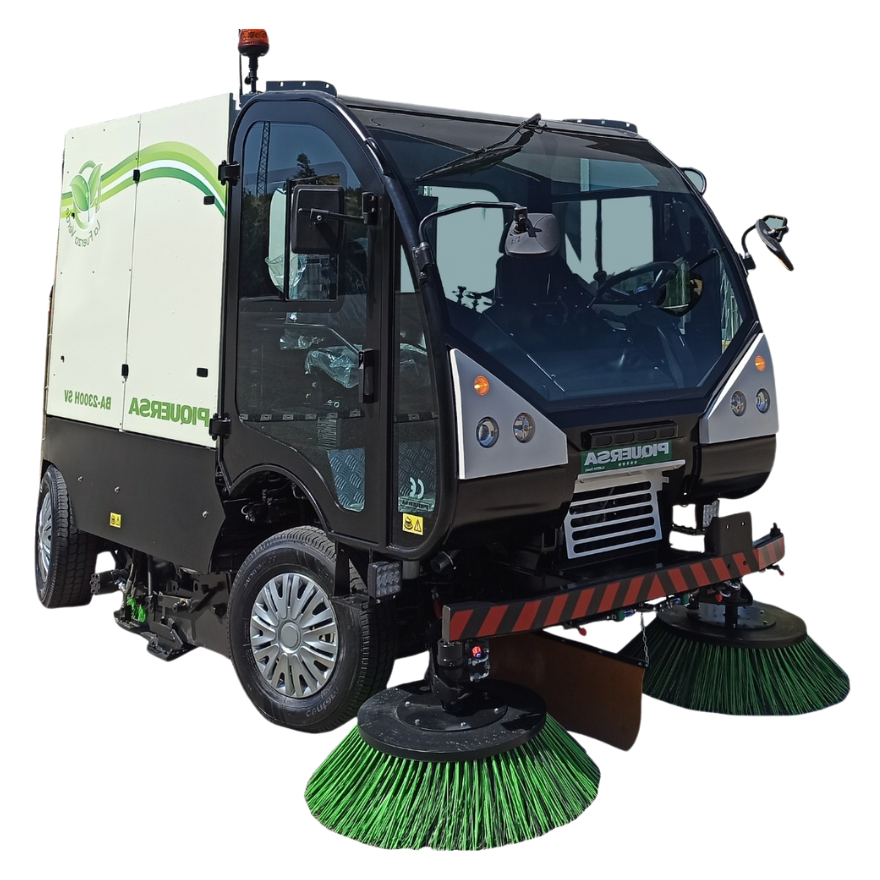

BA-2300H SV COMBI HYDROSTATIC SWEEPER. HOPPER: 1.5 M3. WATER: 900 LITERS. ENGINE: 49 HP.
Compact towed sweeper. Hydrostatic transmission by hydraulic motors to the front wheels. Perkins engine, power 49 HP. TurboDiesel, three cylinders with particulate filter and Stage V electronic management. Hydraulic rear discharge in height. Hydraulic four-wheel steering for greater maneuverability. Hydrostatic brakes.
Provided with three floating sweeping brushes, adjustable in speed and pressure with automatic adjustment: one central roller for the pavement and two lateral circular ones for the curbs. 2,480 mm. sweep width. Hopper capacity of 1.5 m3 and water capacity of 900 Liters. Spray water for sweeping. Washing bar with a maximum width of 3150 mm composed of two extendable side bars and a central fixed one. Flow rate and flushing pressure from 70 Liters to 70 Bars.
Wide visibility cabin equipped with different comfort elements. Regulatory lighting and signaling lights. Pneumatic driver's seat. Upper flashing light. Includes high pressure kit.
| Can Bus | TFT colour screen. Work performance. Check alarms. Diagnostic. |
| Diesel Engine | PERKINS 404D-22. Power 49 H.P. 3 cylinders |
| Transmission | Front-wheel drive |
| Max. Gradeability | 29% |
| Steering | Hydraulic on all four wheels |
| Wheels | 225/70R-15 |
| Cockpit | Pneumatic seat adjustable for the operator weight and height |
| Transport Speed | 38 Km/h |
| Sweeping System | Fitted with two side front brushes and one central brush |
| Washing System | Fitted with a central fixed and two lateral extensible (1.700-2.640). Maximum washing width: 3.150 mm. |
| Capacity | Debris hopper: 1,5 m3 / Prehopper: 160 litres / Water tank: 900 litres |
| Max. Payload | 1.750 Kg |
