SELF-LOADING MECHANICAL SWEEPER. MAX. LOAD: 2,500KG. ENGINE: 25.5 HP. TRANSMISSION: MECHANICAL 4X4.
SELF-LOADING MECHANICAL SWEEPER. MAX. LOAD: 2,500KG. ENGINE: 25.5 HP. TRANSMISSION: MECHANICAL 4X4.

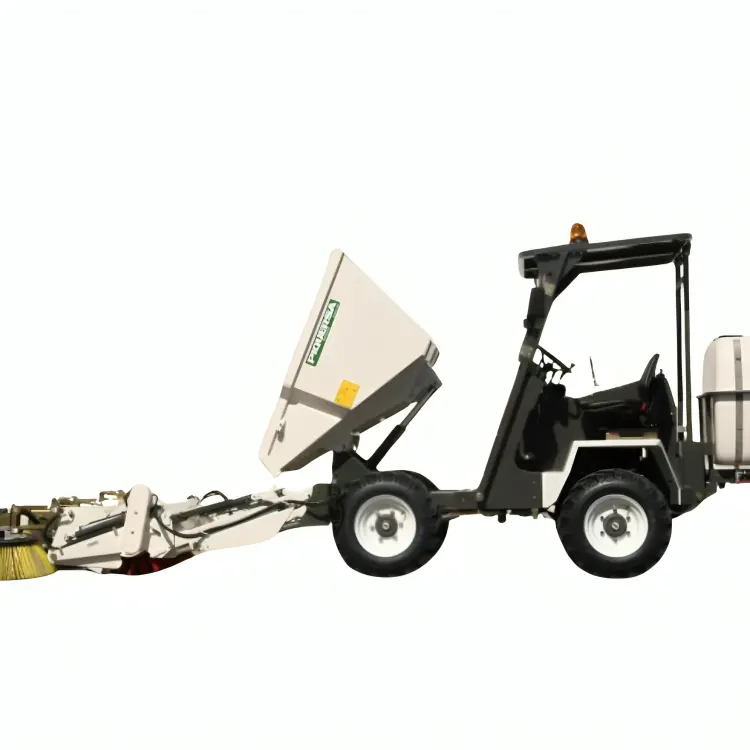

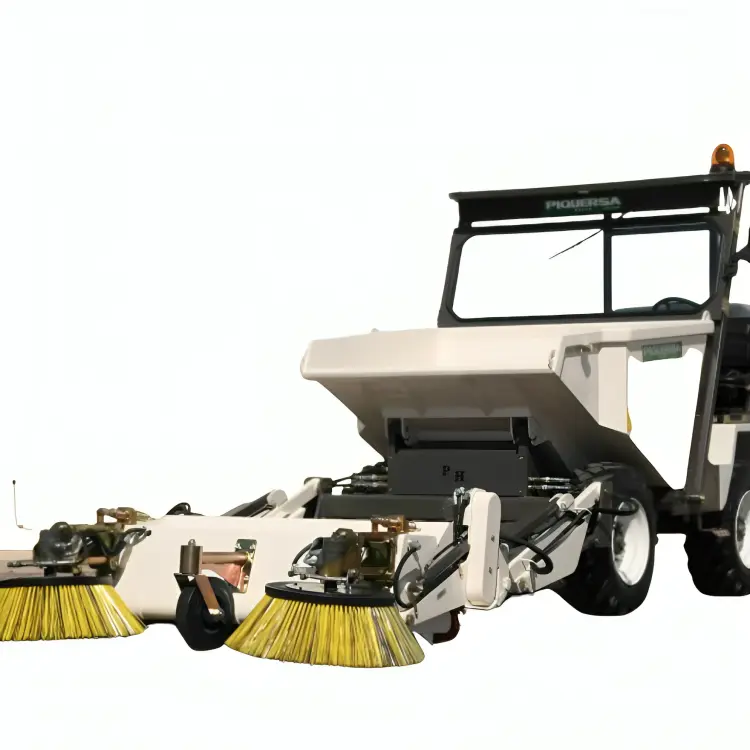

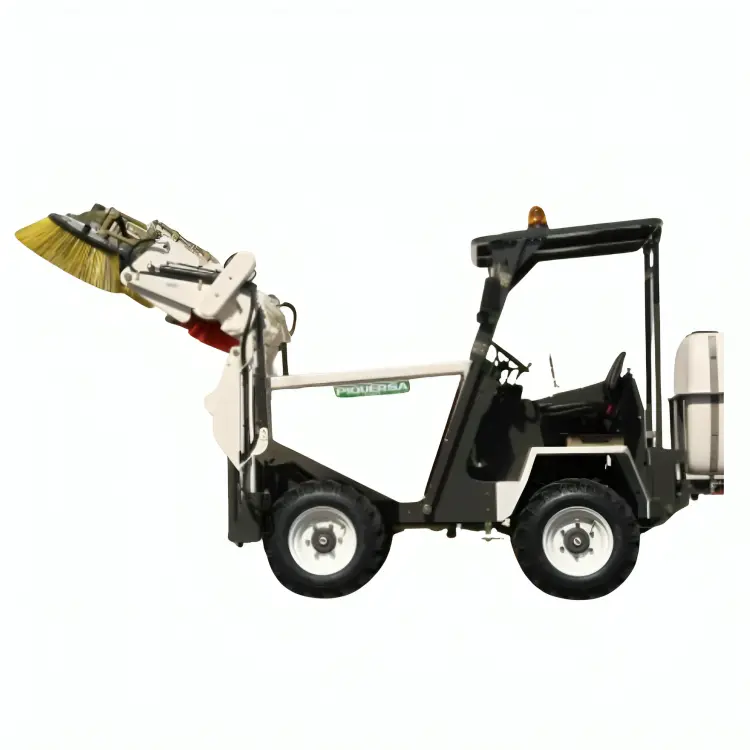

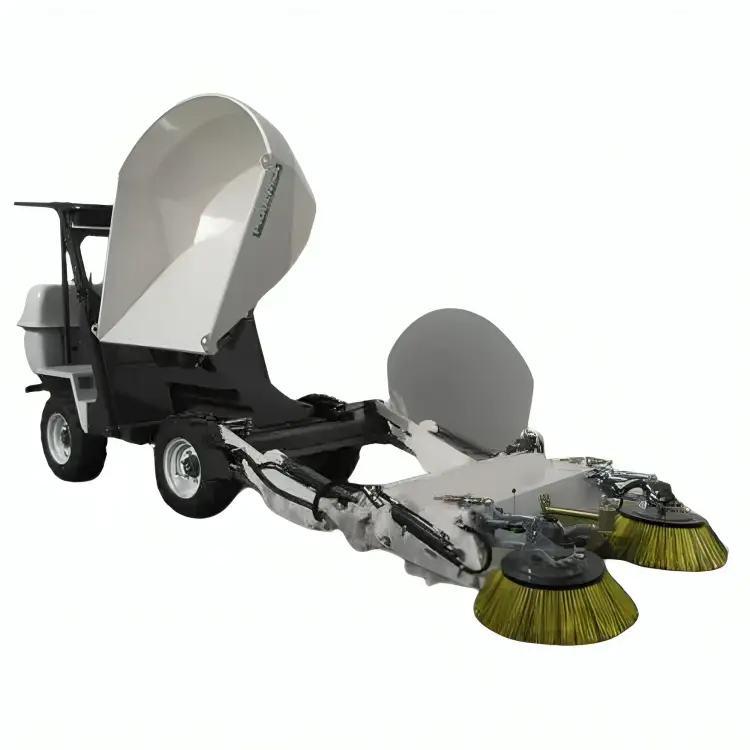

DUMPER self-loading road sweeper. Four-wheel drive, KOHLER engine, 25.5 HP, Diesel, four cylinders. Front hydraulic discharge. Water-cooled. Hydraulic steering, hydraulic brakes. Electric start and stop. Tow pin. Hitch plate for installing a backhoe, forklift mast, etc. Equipped with three floating and adjustable sweeping brushes for wear: one central roller brush for the pavement and two circular side brushes for the curbs. Water spray. Double protective roof. Windscreen. Windscreen wipers. Regulatory lighting and signalling lights. Upper flashing light. Hour meter. Reversing audible warning. Quick hitch. Seat belt.
| DIESEL ENGINE. POWER. Nº. CYLINDERS. COOLING | KOHLER (Lombardini) KDW 1404 STAGE V. Power 25,5 H.P. 4 Cylinders. Refrigeration: Water cooling. |
| TRANSMISSION | 4 Wheels drive. 4x4. |
| GEARBOX | 4+4 Speeds with inverter. |
| BRAKES | Hydraulics |
| STEERING | Hydraulic |
| CHASSIS | . Isoresistant design throughout its length, specially calculated to support the efforts of a self-loading dumper. |
| DRIVING SEAT | Ergonomic, adjustable seat. |
| FRONT / REAR WHEELS | 10.0 / 75 15.3” |
| SWEEPING BOX CAPACITY | 210 L |
| SWEEPED WIDTH | 2.100mm |
| WATER TANK | 350 L |
| IRRIGATION SYSTEM | Pulverised water. |
| HOPPER | BA-2500-AC: Descarga Frontal a 650 mm. - Front unloading at 650 mm |
| WATER LEVEL / LEVEL | BA-2500-AC: 910L / 1.270L / BA-2500-AG: 950L / 1.130L |
| PAYLOAD | 2.500 Kg |
| MAXIMUM GRADIENT | BA-2500-AC: 38% / BA-2500-AG: 35% |
